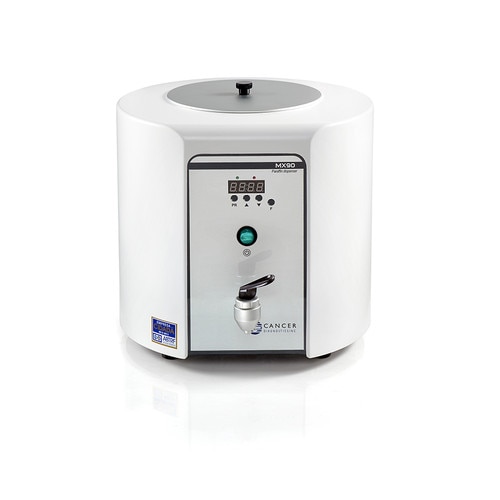

MX90 Digital Paraffin Dispenser, 4L

(0) No Reviews yet


Digital paraffin dispenser - model MX90, was developed for use in the anatomic pathology laboratory. Suitable for paraffin dispensing during the preparation and inclusion of paraffin blocks.

Technical Specifications

  • Input Maximum Current: 127 V = 3,5 A and 220 V = 1,5 A
  • Potency: 330 W
  • Fuse: 20 mm, normal, 5A current (127 V and 220 V).
  • Thermal Protector: Disarm to high temperature when it reaches 212 °F (100 °C). General shutdown of the equipment. Automatic rearm below 203 °F (95 °C).
  • Operation Mode: Continuous
  • Protection Against Incoming Harmful Water : IPX0
  • Capacity: Up to 4 liters of paraffin
  • Temperature control: Environment temperature up to 90 ° C with a range of up to + -2 ° C through Digital Thermostat.
  • Tank height: 155 mm
  • Tank external diameter: 180 mm
  • Tap depth: 60 mm
  • Applicable Placards and Hazard Symbols

    Hover over each placard to see a description of its meaning

    Use the links to download available SDS, IFU or Flyer Documents

    Note: please try the mirror link if you receive an error

    Download IFU
    | Mirror Link
